Product Details:
Payment & Shipping Terms:
|
| Indication Resolution: | 0.1°C | Low Temperature Range: | 25°C To -70°C |
|---|---|---|---|
| High Temperature: | 150°C | Temperature Rising Velocity: | 0.1~3.0°C/min |
| Control Accuracy: | ±0.5°C | Cooling System: | Wind Cooled Or Water Cooled |
| Highlight: | temperature and humidity chamber,humidity and temperature controlled chamber |
||

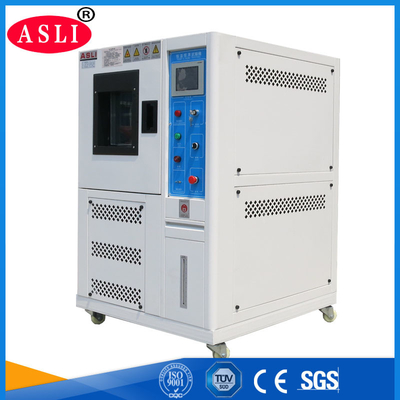

Stainless steel high low temperature alternating humidity test chamber
1. Application of environmental testing chambers:
High low Temperature Cycling chamber is used for basic thermal cycling testing to accelerated stress testing with many models to choose from in a variety of sizes and performance packages.
2. Technical parameters:
| Model | HL-80(A~F) | HL -150(A~F) | HL -225(A~F) | HL -408(A~F) | HL -800(A~F) | HL -1000(A~F) | |||||
|
Internal Dimensions WxHxD (mm) |
400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000 | |||||
|
External Dimensions WxHxD (mm) |
950x1650x950 | 1050x1750x1050 | 1200x1900x1150 | 1200x1950x1350 | 1600x2000x1450 | 1600x2100x1450 | |||||
| Temperature Range |
Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 150°C |
||||||||||
|
Indication Resolution/ Distribution Uniformity of Temperature |
0.1°C /±2.0°C | ||||||||||
|
Control Accuracy of Temperature |
±0.5°C | ||||||||||
|
Temperature Rising/ Falling Velocity |
Temperature rising velocity approx. 0.1~3.0°C/min; temperature falling velocity approx. 0.1~1.5°C/min; ( The Falling velocity Min.1.5°C /min is optional) | ||||||||||
|
Internal and External Material |
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated. | ||||||||||
| Insulation Material | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials | ||||||||||
| Cooling System | Wind cooling or water cooling;single segment compressor for -40 °C,double segment compressor for -70 °C | ||||||||||
| Protection Devices | Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, Over-humidity and over-temperature protection switch, fuses, fault warning system | ||||||||||
| Optional Accessories | Inner door with operation hole(Optional), Recorder(optional),Dehumidifier | ||||||||||
| Compressor | French Tecumseh Brand, Germany Bizter Brand | ||||||||||
| Power | AC 220V AC 380V | ||||||||||
3. features for Weathering chamber:
1. Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular viewing window for the observation of the test products under test,equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with interior lights.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. French Tecumseh is used for the circulation system of the compressor, capable of removing the lubricant between the
condensation pipes and capillaries.Refrigerations (R23,R404A) are environmental friendly.
6. LCD display screen is used for the control unit, capable of displaying the measured value as well as the set value and time.
7. Multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.
4. Warranty: one year free warranty for whole set machine,lifelong time maintainance.
5. After-sale service: feedback within 2 hours after get the call.
6. Service: OEM service,Design service,Buyer lable service.
7. More pictures of high and low temperature test chamber :
If you are also intersted in those test equipment , pls contact with us, thank yo u.
