Laparoscopy And Medical Endoscopy Camera System (700 Line) Hysteroscopy Tower Set

China Laparoscopy And Medical Endoscopy Camera System (700 Line) Hysteroscopy Tower Set supplier
Laparoscopy And Medical Endoscopy Camera System (700 Line) Hysteroscopy Tower Set supplier Laparoscopy And Medical Endoscopy Camera System (700 Line) Hysteroscopy Tower Set supplier

Large Image :  Laparoscopy And Medical Endoscopy Camera System (700 Line) Hysteroscopy Tower Set

Product Details:

Place of Origin: CHINA
Brand Name: STATEMED
Certification: CE, ISO
Model Number: STT9-MEC15

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: competitive
Packaging Details: carton, wooden case
Delivery Time: 10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 Sets per month
Contact Now
Detailed Product Description
Product Name: Medical Endoscope Camera System (700 Line) White Balance Range: 200-15000''K
Image Sensor: SONY SUPER HAD CCD The Output Pixels: PAL:795(H)*598(V)
Scanning System: PAL:752lines,50field/sce Synchronization System: The Synchronous
Highlight:

video endoscopy system

,

medical endoscope camera



Hosptical Endoscope Camera System , Medical Endoscope Camera System (700 line)





Product Information:



1. Endoscope





Name Ear endoscope Sinus Mirror Laryngoscope
Mirror tube diameter 4mm 3mm 4mm 2.7mm 8mm
FOV 45° 60° 40°
Depending on the angle 0°30°70° 0°30°70° 70° 90°
Working Length 50/90/110mm 175mm 185mm



Laparoscopy And Medical Endoscopy Camera System (700 Line) Hysteroscopy Tower Set



2. CCD Camera (single-chip) 700 Line





Specifications name Specifications
The white balance Automatic/manual lock white balance
White balance range 200-15000''K
Image sensor SONY SUPER HAD CCD
The output pixels PAL:795(H)*598(V)
Scanning system PAL:752lines,50field/sce
Synchronization system the synchronous
Horizontal definition ≥700(line)
Video output 1.0VP-P.75(ohms)
Signal to noise ratio ＞52dB
Gamma correction 0.45
Electronic shutter 1/50-1/100000 second consecutive
Minimum illumination 0.5lux XF2.0
Remote control The camera can lock white balance







3. LED Cold Light Source



Specifications name Specifications
The power supply AC220V,50HZ
LED power 100W 60W Optional
Intensity of illumination ≥1400000lux
Output flux 1800lm
Color temperature 3000k-7000k
Color rendering index ≥90
Spectral range 400-700nm
Noise ≤55dB
Packing List
Specifications name Quantity
Case 1 SET
Power cable 1 PC
Light transmitting bundle 1 PC
Manual book 1 PC
3 Certificates 1 PC
Qualification Certificate 1 PC
Warranty Card 1 PC

Laparoscopy And Medical Endoscopy Camera System (700 Line) Hysteroscopy Tower Set



4. Ｍonitor



Parameter Model
Display 19(Standard Definition)SD 24(High Definition)HD
Size ratio 5:4 16:9
Distance 0.294*0.294mm 0.2652*0.2652mm
Resolution 1280*1024 1920*1080
Chroma 16.7M 16.7M
Brightness 400cd/m2 400cd/m2
Contrast 1400:1 1500:1
The response time 5ms 5ms
Viewing Angle 178°(H)*178°(V) 178°(H)*178°(V)
Input signal HDMI/DVI/VGA/CVBS/USB/3G-SDI/HD-SDI HDMI/DVI/VGA/CVBS/USB/3G-SDI/HD-SDI Optional
Output signal CVBS CVBS
Power supply AC100-240V50/60HZ AC100-240V50/60HZ
Power 40VA 50VA



Laparoscopy And Medical Endoscopy Camera System (700 Line) Hysteroscopy Tower Set

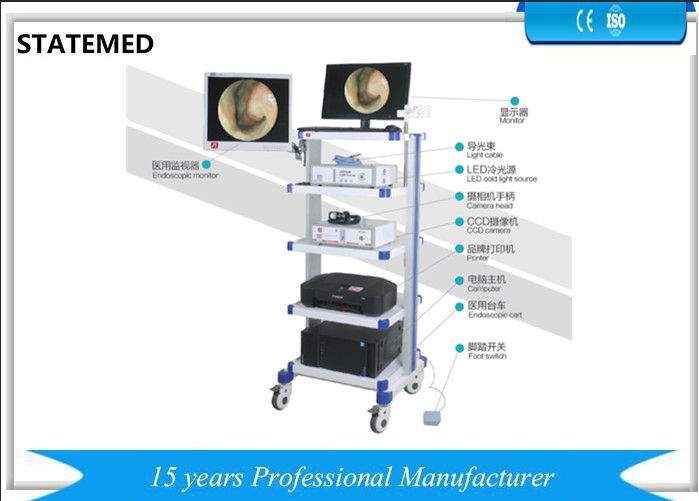

Full Set Photos:



Laparoscopy And Medical Endoscopy Camera System (700 Line) Hysteroscopy Tower Set



Tag:

video endoscopy system,

medical endoscope camera
