Specifications | Range | Accuracy |
DC Voltage | 600mV/6V/60V/600V/1700V | ±(0.8%+3) |
AC Voltage | 600mV/6V/60V/600V/1000V | ±(1.0%+3) |
DC Current | 60mA/600mA | ±(1.2%+3) |
AC Current | 60mA/600mA | ±(1.5%+3) |
Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ | ±(1.2%+5) |
60MΩ | ±(2.0%+5) | |
Capacitance | 10nF/100nF/10μF/100μF | ±(3.0%+5) |
1mF/10mF | ±(4.0%+5) | |
100mF | ±(5.0%+5) | |
Temperature | -20℃~1000℃ | ±(2.0%+2) |
-4℉~1832℉ | ||
Frequency |
10Hz/100Hz/1000Hz/10kHz/ 100kHz/1000kHz/10MHz |
±(1.0%+5) |
Duty | 5%~95% | ±(3.0%+5) |
Feature | ||
Display | 6000 counts | |
Auto Range and Manual Range |
√ | |
MAX/MIN/PEAK | √ | |
Relative measurement | √ | |
LPF | √ | |
Diode Test | √ | |
Continuity Test | √ | |
Temperature measurement | √ | |
Auto Power Off | √ | |
Back Light | √ | |
Data Hold | √ | |
NCV Detection | √ | |
General | ||
Power Supply | 4*1.5V AA Batteries | |
Size | 204mm*94mm*57mm | |
Weight | 410g | |
Safety Rating | EN61010-1, EN61010-2-030, EN61326, CAT Ⅲ 1000V |

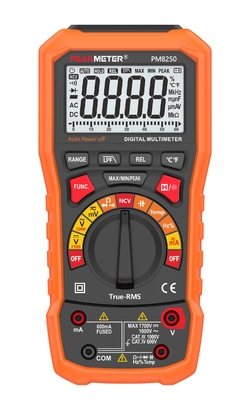

PM8250 is a hand-held digital multimeter with analog bar and digital display, it is a high precision True-RMS multi-meter. The instrument has LED digital screen and back light function. It can be used to measure 1700V DC Voltage, 1000V AC Voltage, AC DC Current, frequency, capacitance, temperature, resistance, diode and continuity test, NCV detection. The meter also has LPF measurement, relative measurement, auto and manual range, maximum/minimum/peak value measurement and data hold functions.
